Our Pools

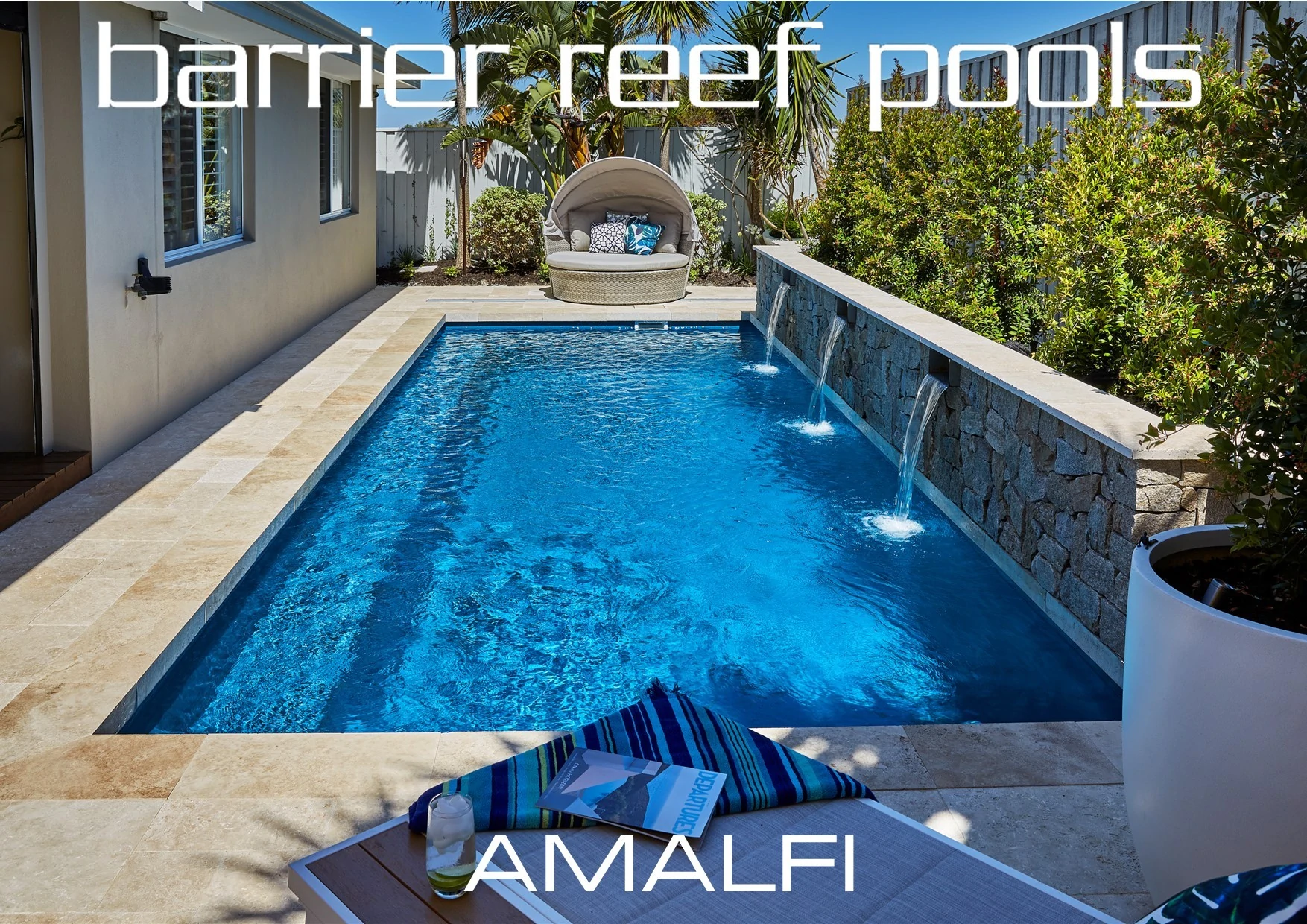

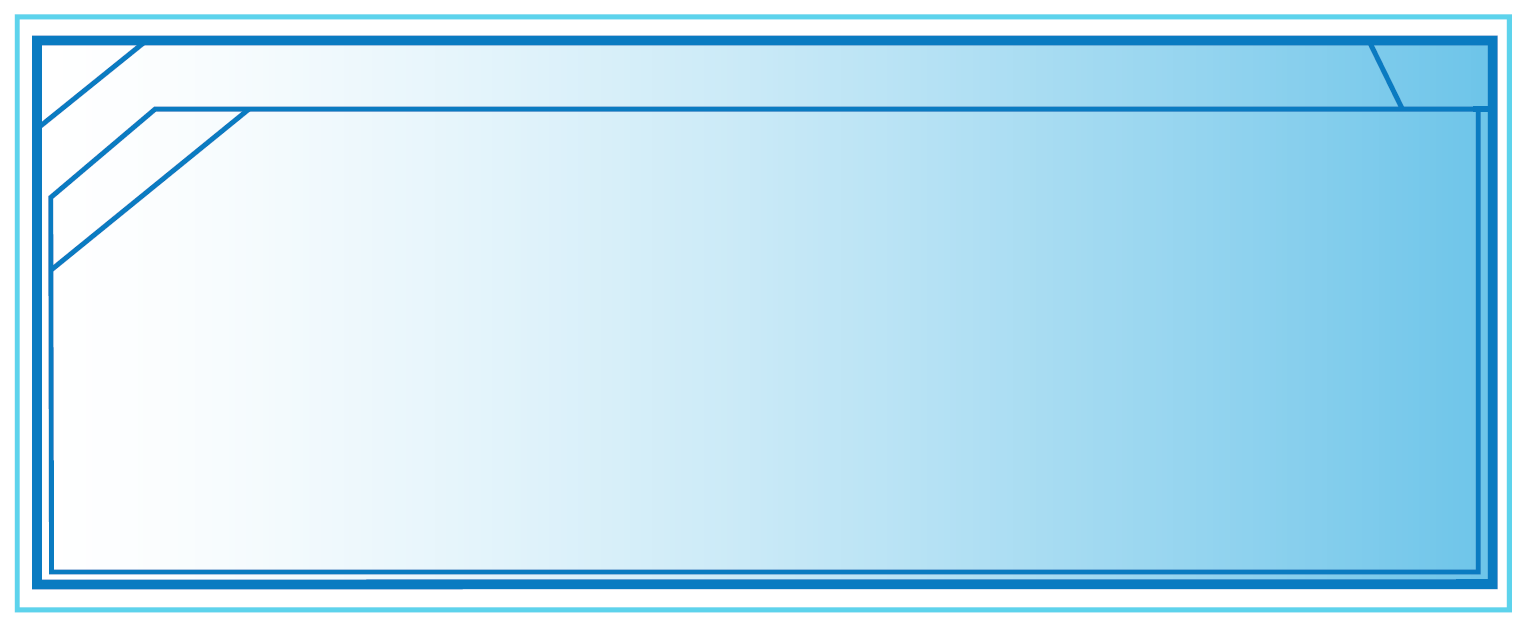

Amalfi
Length Width Deep Shallow 8.2m 2.8m 2.06m 1.27m 7.2m 2.8m 1.98m 1.27m 6.2m 2.8m 1.88m 1.27m 5.2m 2.8m 1.78m 1.27m 4.2m 2.8m 1.65m 1.27m

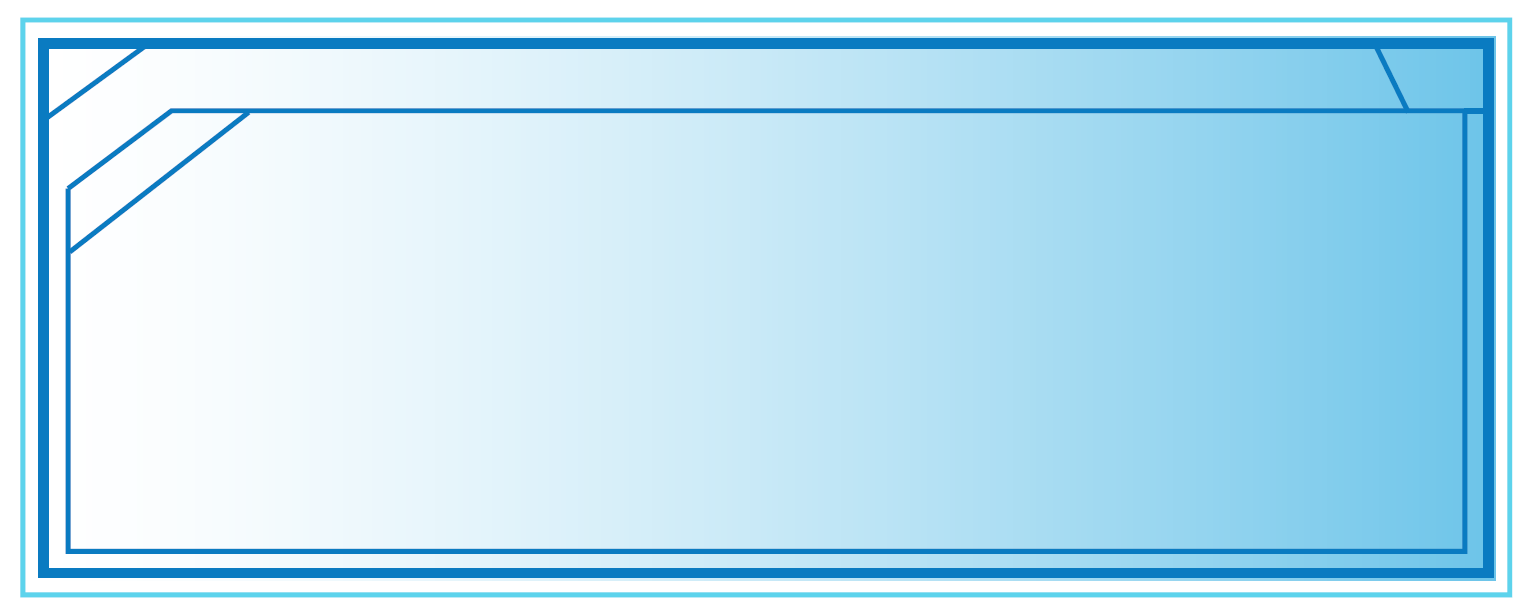

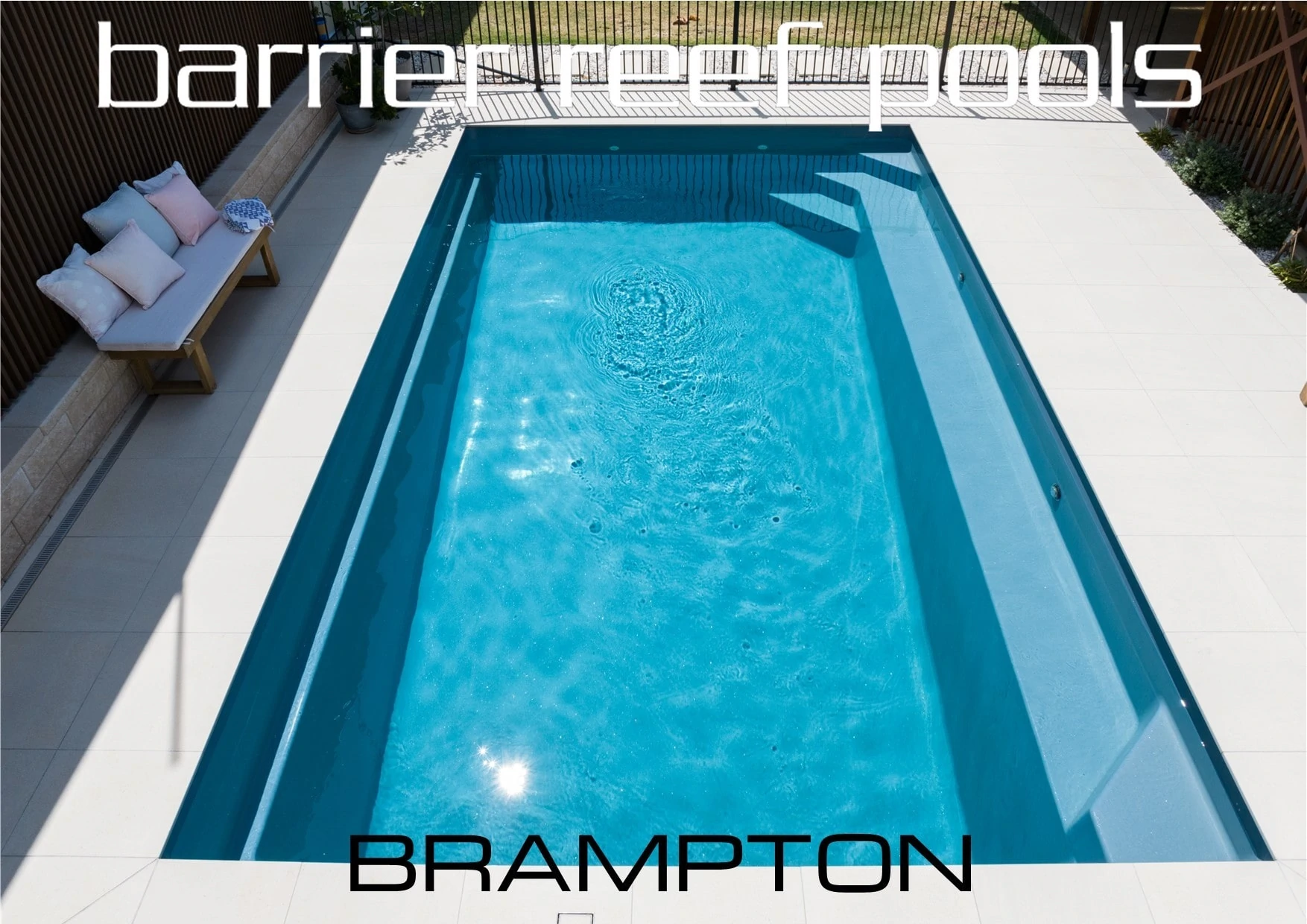

Brampton
Length Width Deep Shallow 10.2m 4.4m 2.06m 1.07m 9.2m 4.4m 2.06m 1.17m 8.2m 4.4m 2.06m 1.27m 7.2m 4.4m 1.98m 1.27m 6.2m 4.4m 1.88m 1.27m

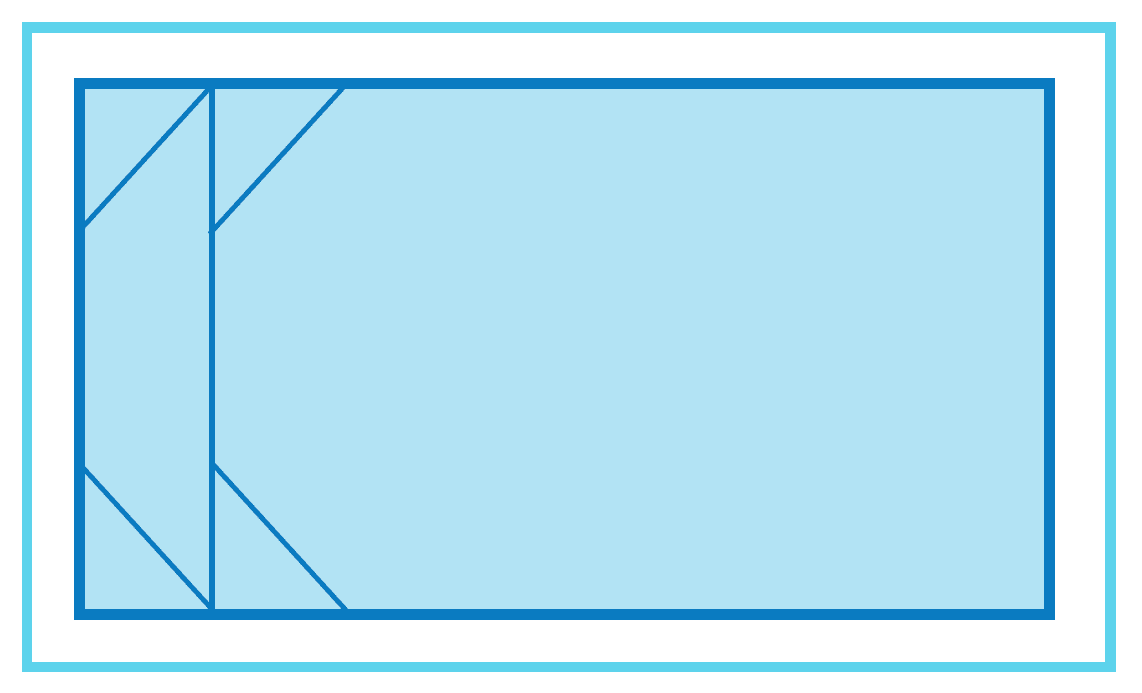

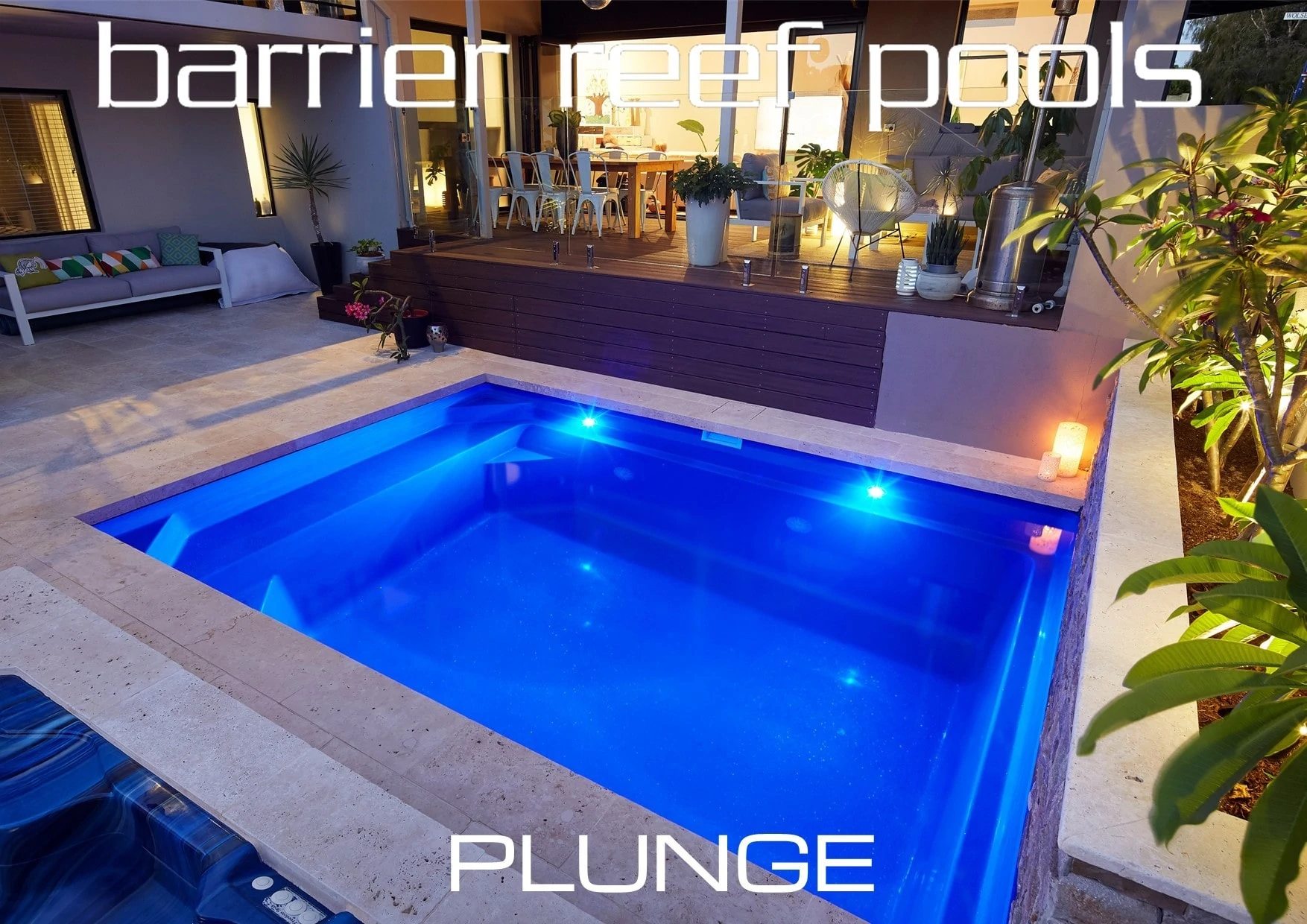

Plunge
Length Width Flat Bottom 6.5m 3.45m 1.67m 5.5m 3.45m 1.67m 4.7m 3.45m 1.67m

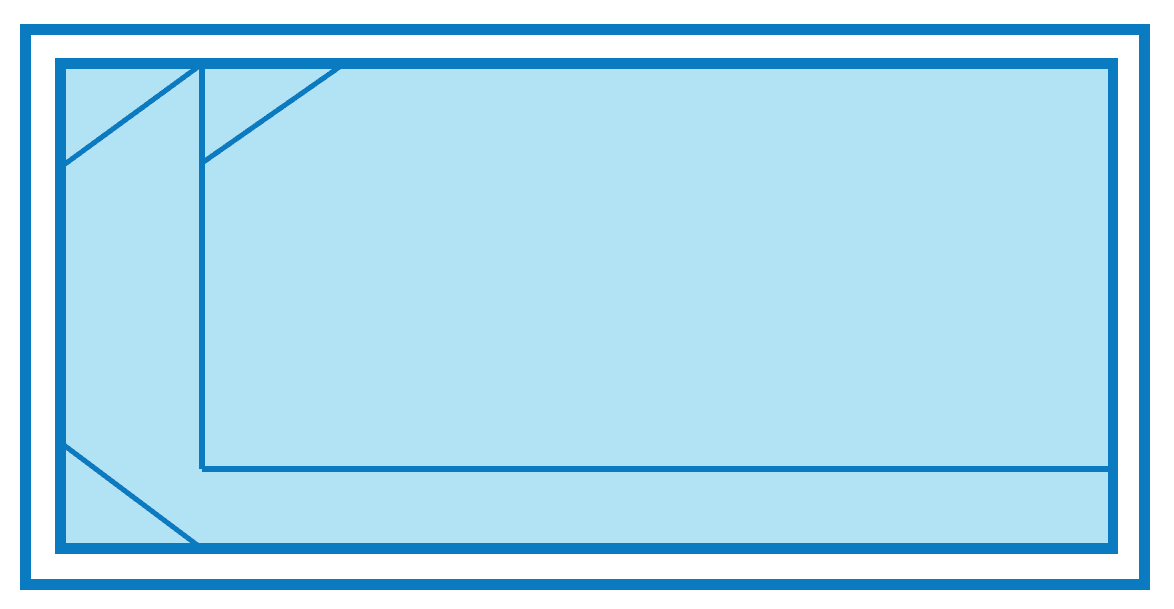

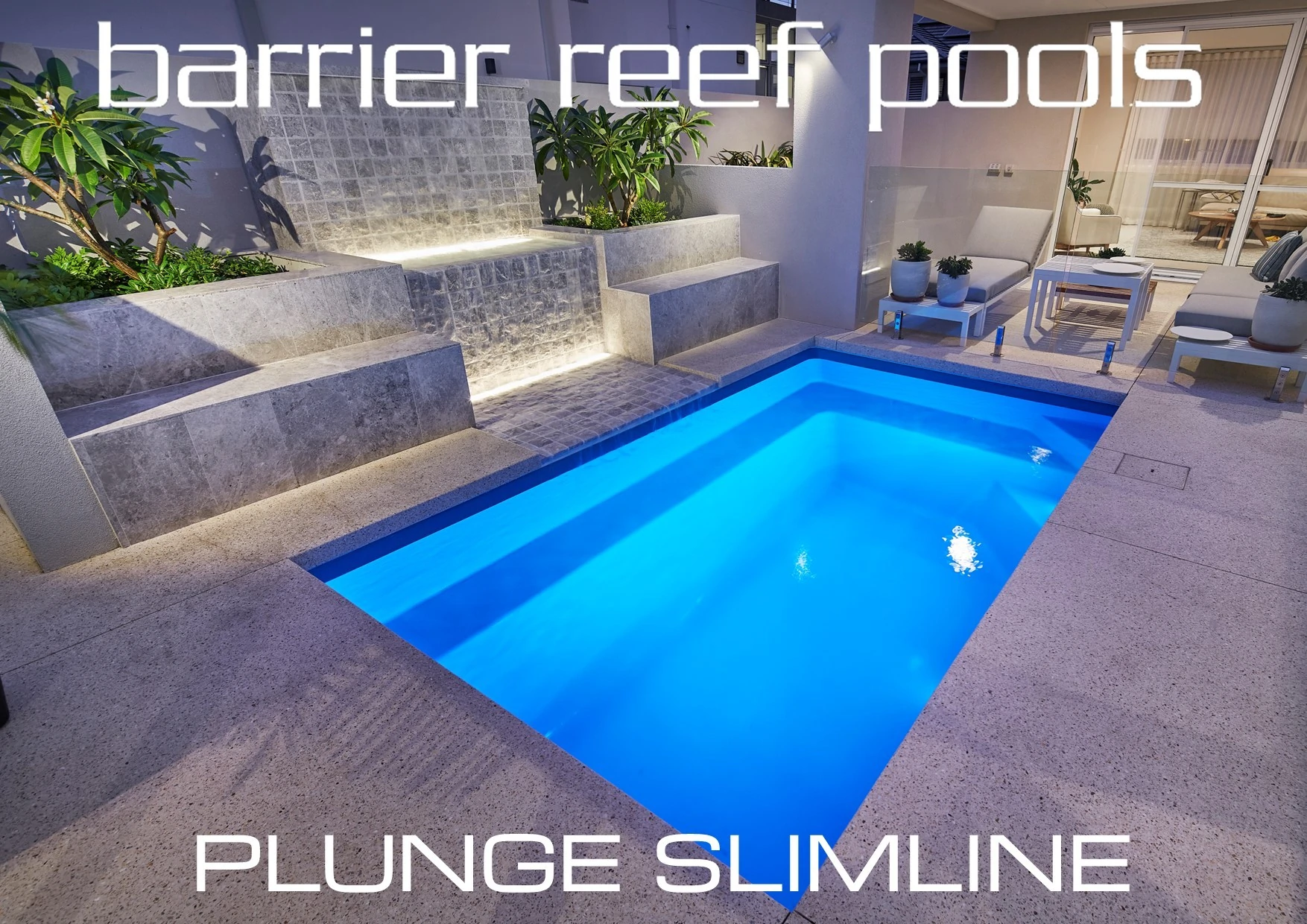

Plunge Slimline
Length Width Flat Bottom 4.2m 2.6m 1.6m 4.2m 1.6m 1.6m NB 4.2m x 1.6m has no side seat

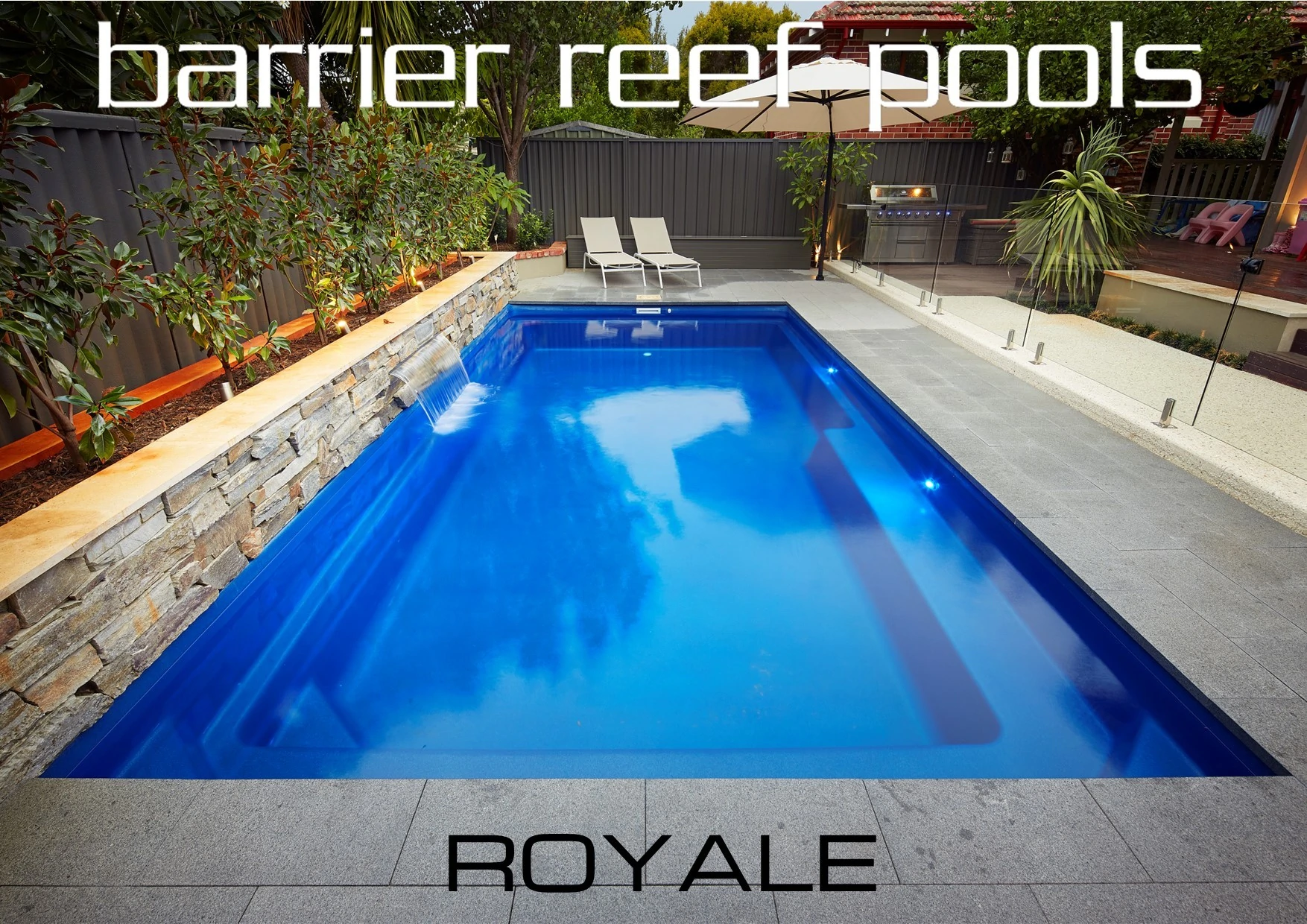

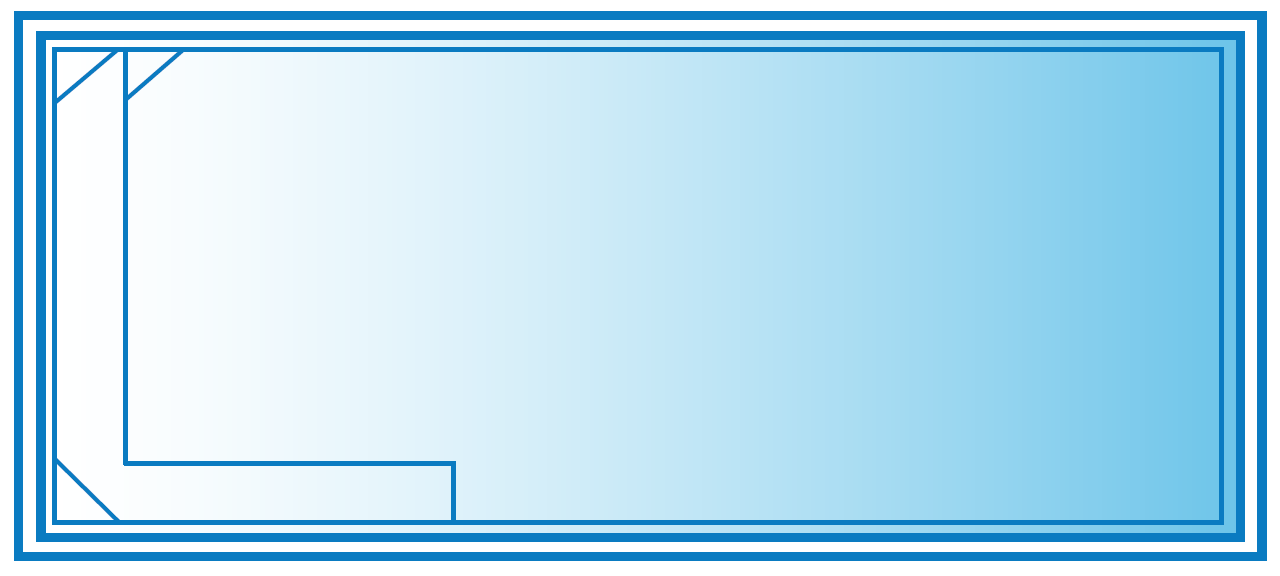

Royale
Length Width Deep Shallow 10.5m 3.8m 1.95m 1.11m 9.5m 3.8m 1.86m 1.11m 8.5m 3.8m 1.79m 1.11m 7.5m 3.8m 1.71m 1.11m

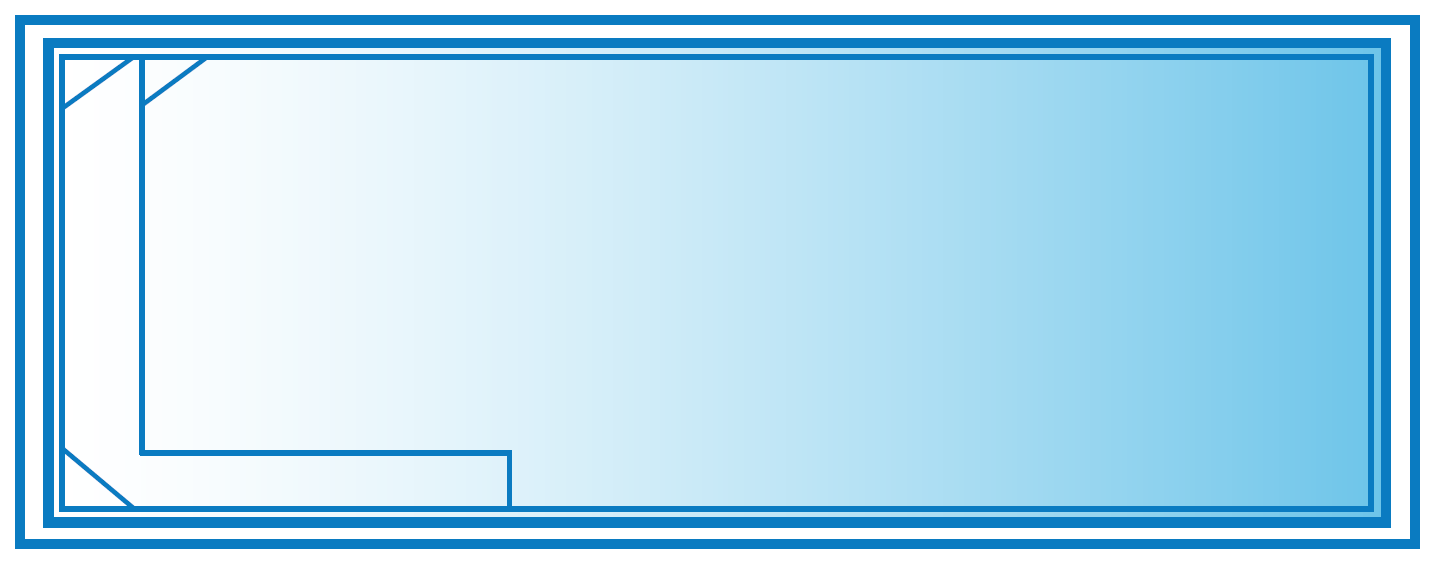

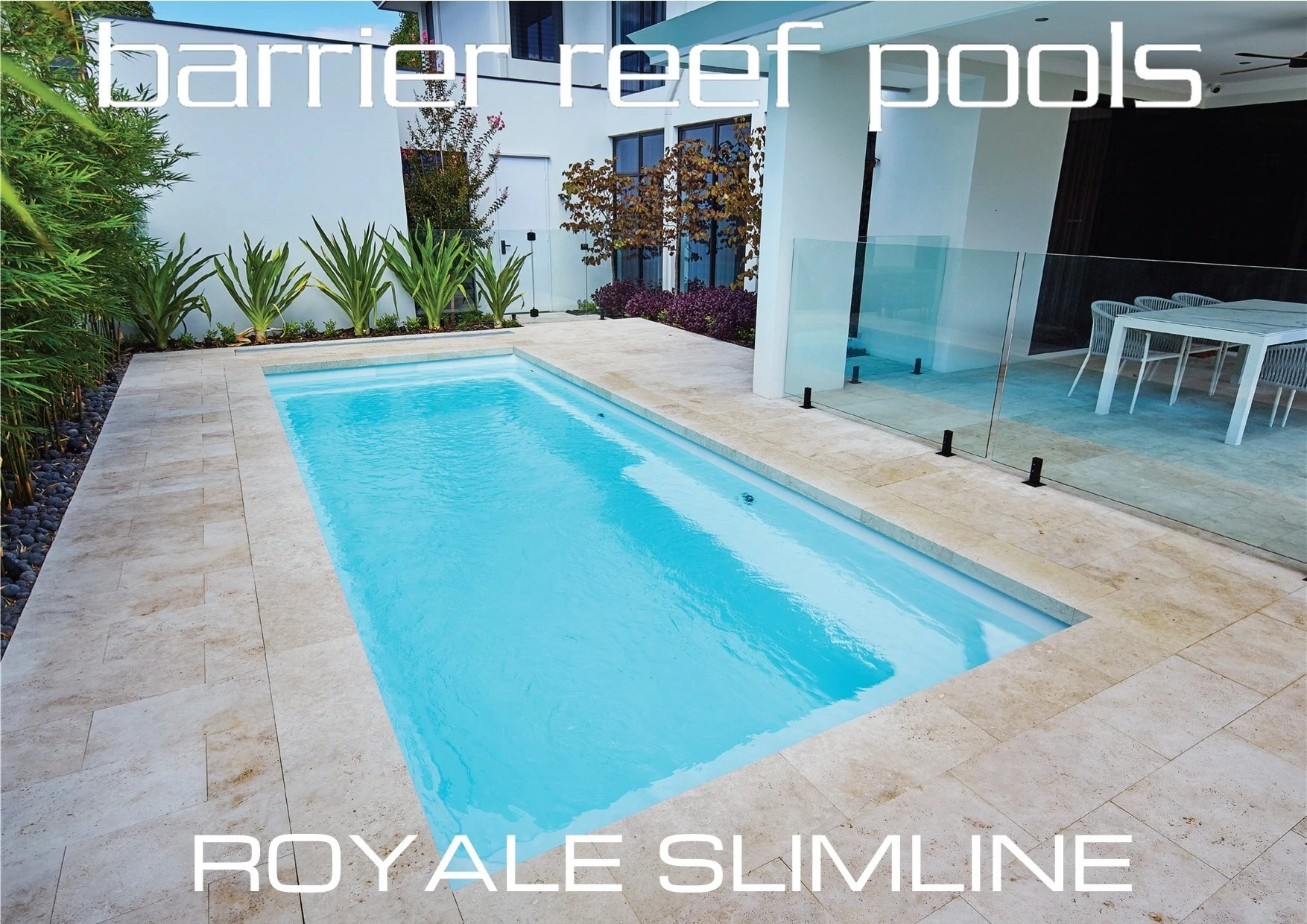

Royale Slimline
Length Width Deep Shallow 7.2m 2.8m 1.81m 1.24m 6.2m 2.8m 1.72m 1.24m

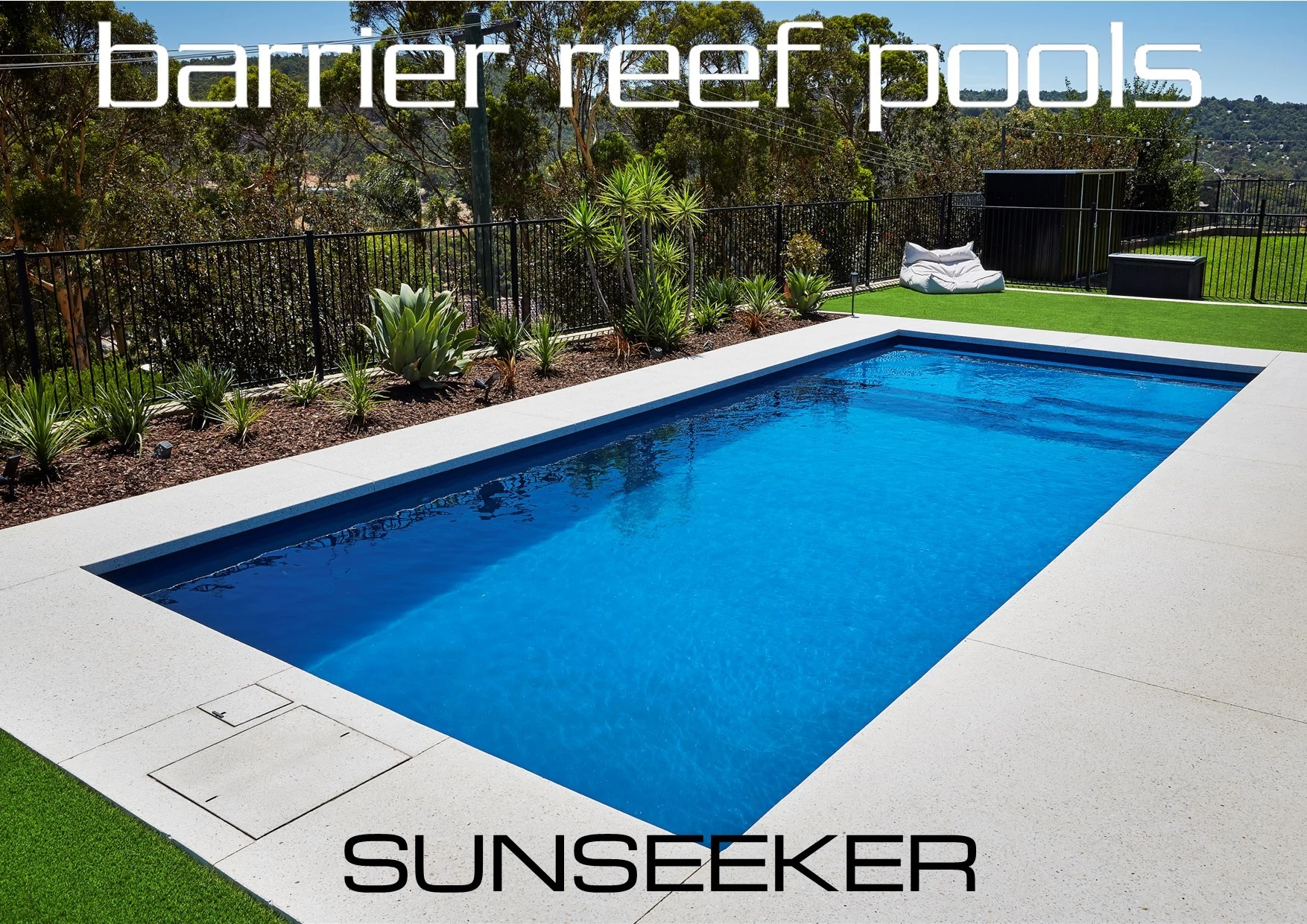

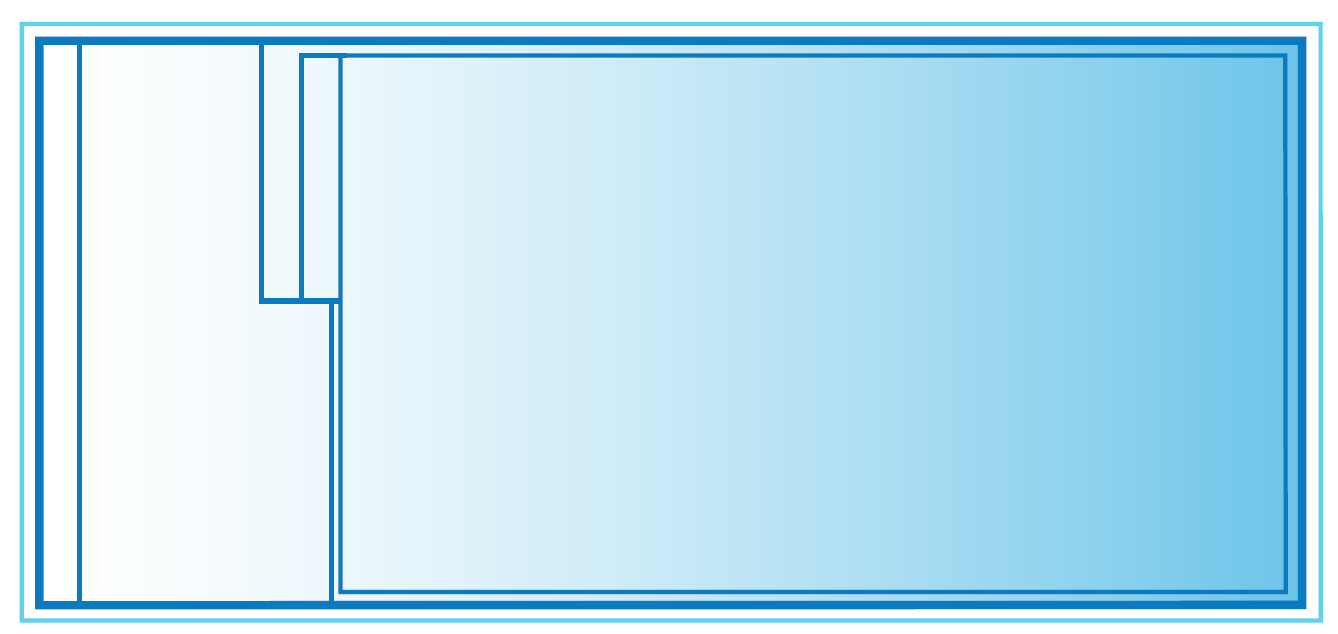

Sunseeker
Length Width Deep Shallow 10.2m 4.4m 1.93m 1.34m Platform area approx 4.2m x 1.8m

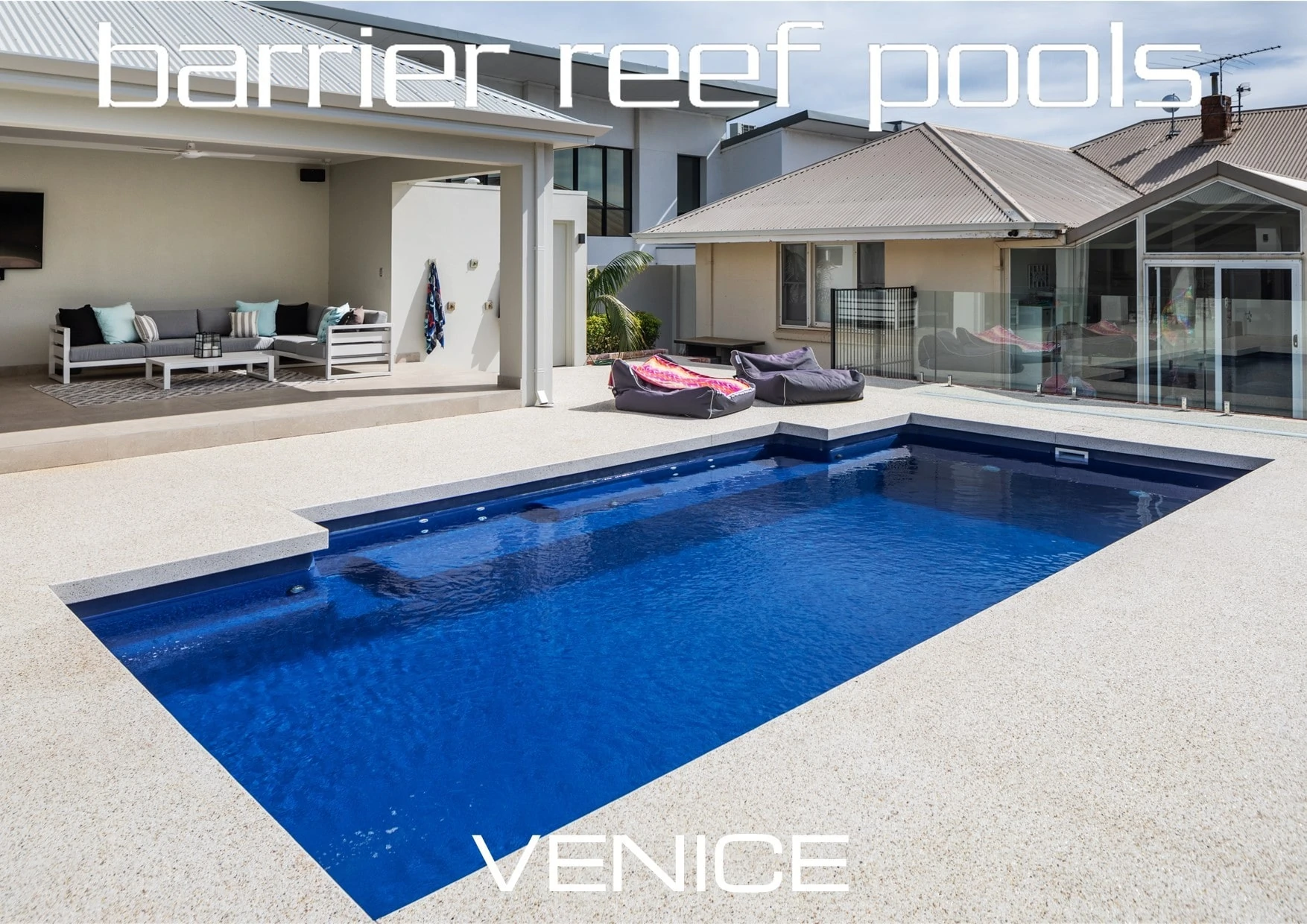

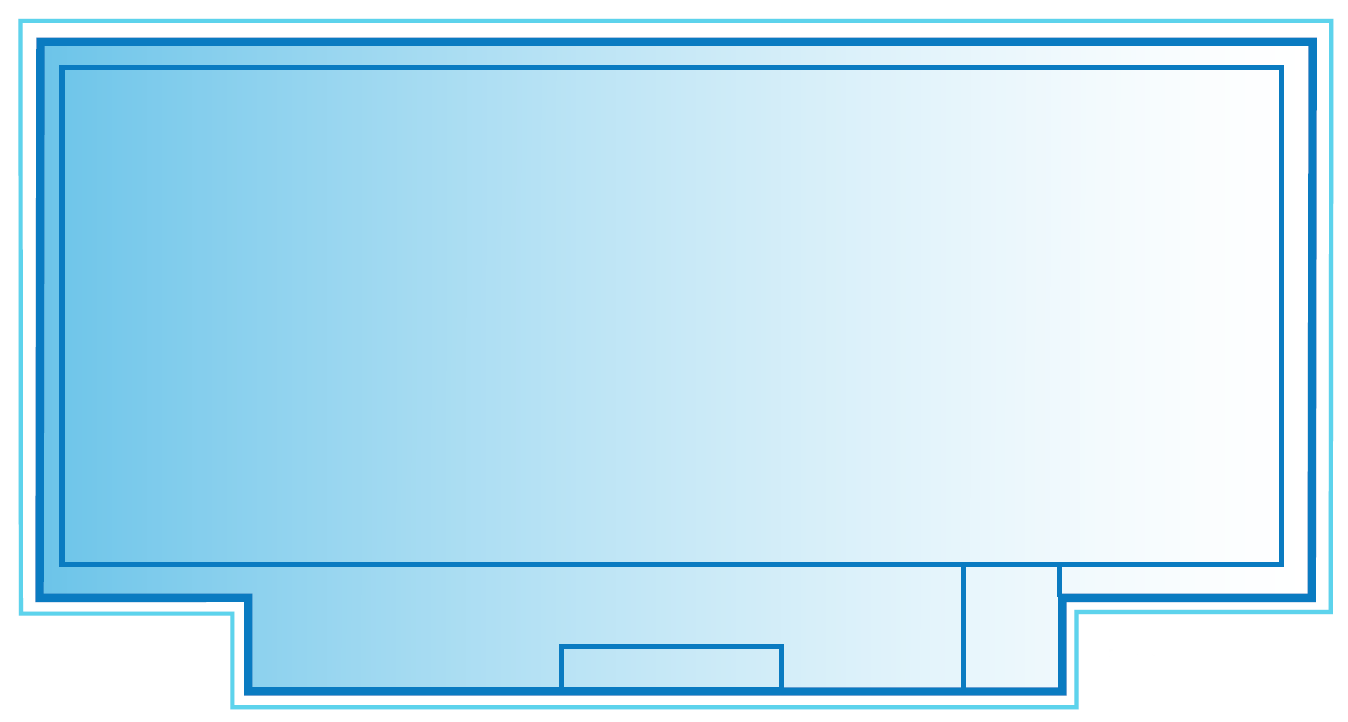

Venice
Length Width Deep Shallow 10.5m 4.4m 1.98m 1.14m 9.5m 4.4m 1.93m 1.18m 8.5m 4.4m 1.90m 1.22m 7.6m 4.4m 1.86m 1.26m

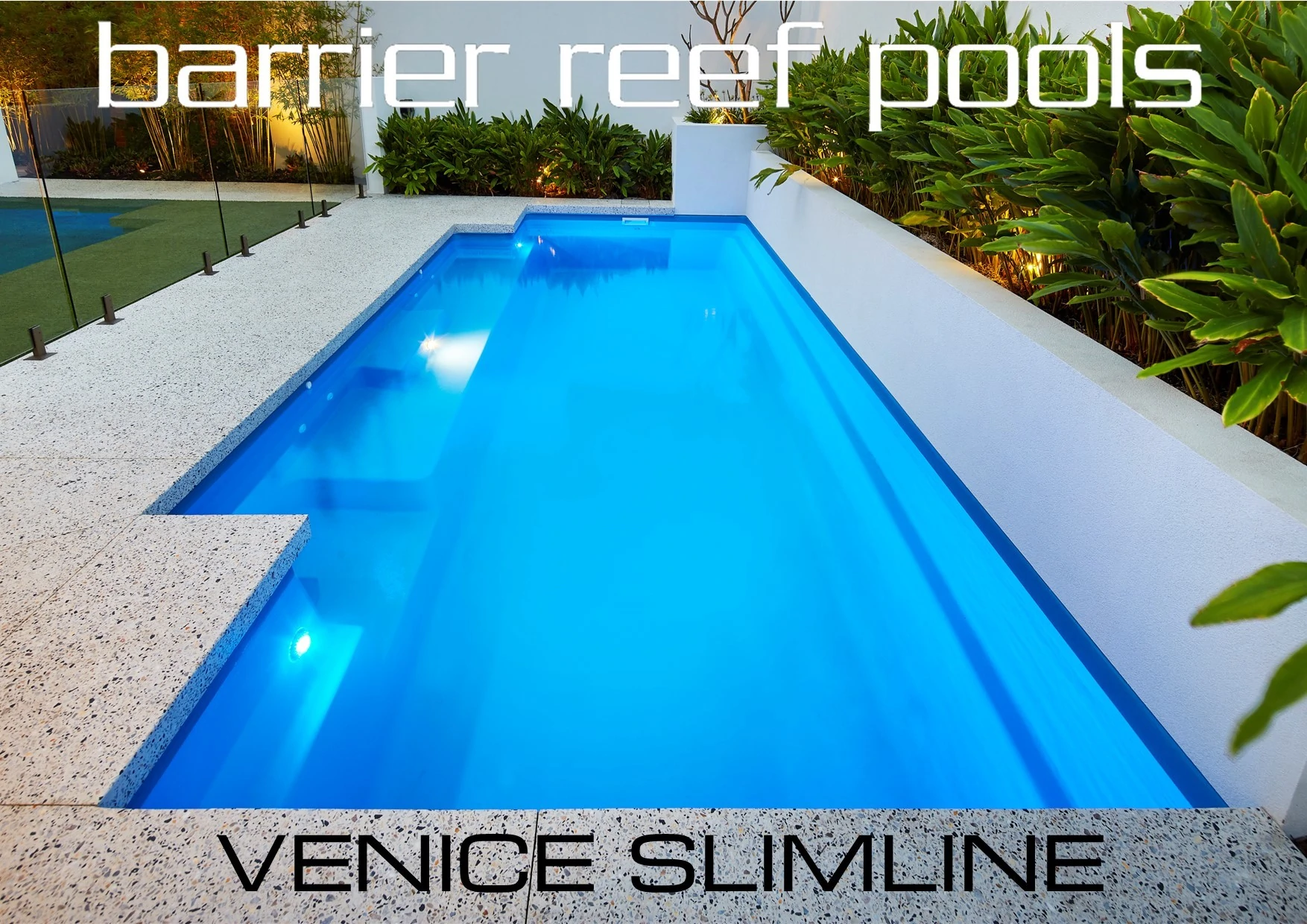

Venice Slimline
Length Width Deep Shallow 7.2m 3.4m 1.86m 1.24m 6.2m 3.4m 1.76m 1.24m

We have pool shells in stock. Contact us to find out more

LAYER 1 INTERIOR SURFACE FINISH
Advanced Pool Colour Technology gelcoat with an optional Lifetime Interior Surface Guarantee that is UV and chemical resistant using the best colour technology currently available
LAYER 2 ANTI-CORROSION BARRIER
Highest quality Vinyl Ester resin layer, providing excellent bonding to Advanced Pool Colour Technology as well as superior chemical and water resistance for the highest protection.
LAYER 3 FIRST STRUCTURAL LAYER AND ADDITIONAL CHEMICAL RESISTANT LAYER
Additional layer of the highest quality Vinyl Ester resin combined with JUSHI E6-CR glass fibre to further increase corrosion resistance and strength to the laminate
LAYER 4 SECOND STRUCTURAL LAYER
Consists of high quality Polyester resin and JUSHI E6-CR glass fibrewith additional structural enhanced properties. No fillers used
LAYER 5 REINFORCEMENT LAYER
Additional layer of high quality Polyester resin and JUSHI E6-CR glass fibre with additional structural enhanced properties added to the reinforcement structures on the pool shell. No fillers used
LAYER 6 OUTER CORE LAMINATE
Klegecell/Divinycell sandwich core laminate is used on luxury yachts & F1 racing boats. Klegecell/Divinycell has been recognised as a world leader in high performance sandwich core strengthenening
LAYER 7 OUTER SEALER COAT
Glossy finish coat with a high quality waxed Polyester resin to protect the pool layers.
VINYL ESTER RESIN is the highest quality resin available for swimming pools with excellent resistance to osmosis, heat, corrosion and water damage. Vinyl Ester resin is twice the price of alternative resin types. Barrier Reef Pools uses three layers of Vinyl Ester resin in the manufacturing of our pools, ensuring a longer lasting pool with increased strength and protection.Benefits of Vinyl Ester Resin “Making your pool last longer”• Higher resistance to water penetration and damage (Osmosis)• Higher resistance to heat• Higher resistance from corrosion • Improved strength properties
